Product Overview

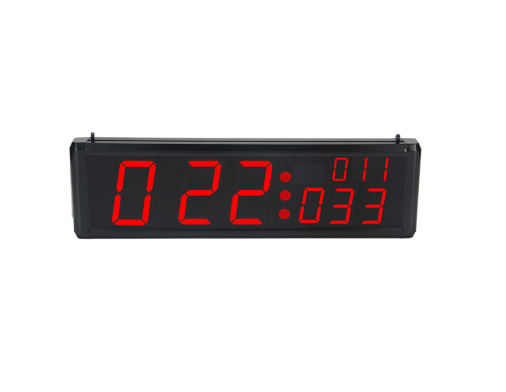

The XX-X330N Series Smart Wireless Display Receiver is designed to receive and display incoming calls from compatible wireless call buttons. Its clear display can show 3 groups of 3-digit numbers from 000 to 999, together with letters, allowing healthcare staff to identify incoming calls quickly.
The receiver supports up to 400 wireless call buttons and up to 32 remote controls for call cancellation. It displays the latest 32 calls in a rolling sequence until the calls are cancelled, helping staff monitor pending requests efficiently.
During standby mode, the XX-X330N Series displays the current time. Different service types can also be identified through indicator dots, while adjustable ringtones and volume settings provide greater flexibility for different installation environments.
Key Features
- Smart wireless display receiver for monitoring incoming calls
- Displays 3 groups of 3-digit numbers from 000 to 999
- Supports letter display
- Displays the current time during standby
- Compatible with up to 400 wireless call buttons
- Supports up to 32 remote controls for call cancellation
- Displays the latest 32 calls in a rolling sequence until the calls are cancelled
- Supports call cancellation via remote controls
- Different service types can be identified through indicator dots
- 1 indicator dot: CALL
- 2 indicator dots: ORDER
- 3 indicator dots: BILL
- Adjustable ringtone and volume
- Available for desktop or wall-mounted installation
Specification
| Working Voltage | DC 12V |
| Working Current | < 1A |
| Sensitivity | -129dBm |
| Audio Output |
2W |
| Working Range | up to 200m (open area) |
| Dimensions | 750 x 180 x 28 mm |
