Product Overview

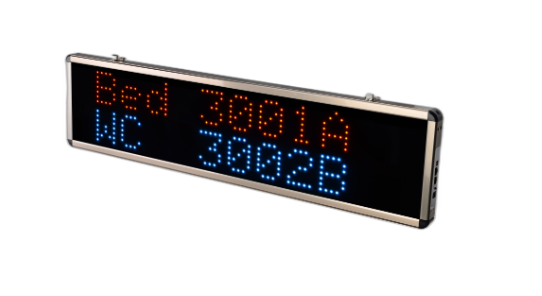

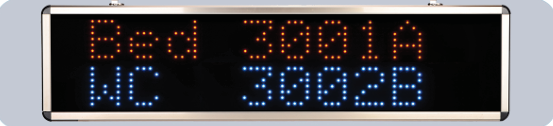

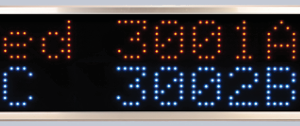

The XX-X1000V Series Dot-Matrix Display Receiver is designed to display and manage incoming calls from wireless nurse call buttons. Suitable for installation at nurse stations or in hospital corridors, the receiver provides clear visual and audible call notifications to support efficient communication between patients and healthcare staff.
The receiver features a 7-color dot-matrix display with customizable color options and supports up to 400 wireless nurse call buttons. It can display 1, 2 or 4 groups of calling numbers, with support for up to 10-digit letters and numbers for clear and precise identification.
Different call buttons can be assigned individual ringtones and display colors, helping staff identify the calling location or service type. The XX-X1000V Series also supports multiple cancellation methods, low battery indication and system data copying for convenient operation and maintenance.
Key Features
- Designed for nurse stations and hospital corridors
- 7-color dot-matrix display with customizable color options
- Compatible with up to 400 wireless nurse call buttons
- Displays 1, 2 or 4 groups of calling numbers
- Supports up to 10-digit letters and numbers for precise identification
- Assign unique ringtones and display colors to individual call buttons
- Flexible call cancellation options
- Supports cancellation using the “Cancel” key on compatible nurse call buttons
- Supports automatic call cancellation
- Supports cancellation via remote controls
- Indicates the low battery status of specific call buttons
- Displays a running message or the current time during standby
- Supports different indications for different service types
- Adjustable ringtone and volume
- Data Copy Function for transferring system settings and data to another XX-X1000V Series
- Can be integrated with management software for data backup, call history tracking and staff management
Specification
| Working Voltage | DC 5V |
| Working Current | < 3A |
| Sensitivity | -129dBm |
| Audio Output |
2W |
| Working Range | up to 200m (open area) |
| Dimensions | 750 x 180 x 28 mm |
